Locking Plates

Home » Our Products » Locking Plates
DOWNLOAD BROCHURE

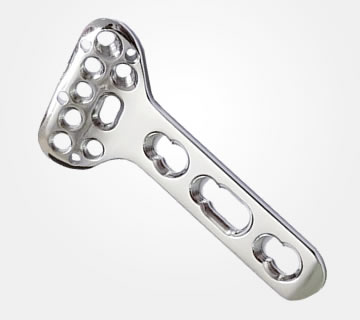

LCP DISTAL RADIUS KOPIES PLATE -WIDE (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10

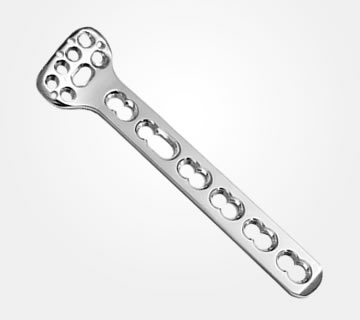

LCP DISTAL RADIUS KOPIES PLATE-STANDARD (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10

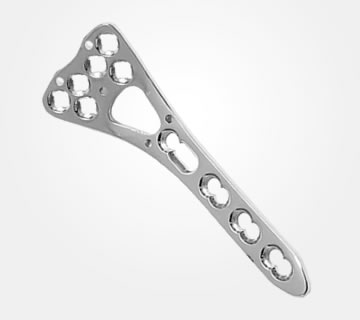

LCP V.A TWO COLUMN PLATE (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12

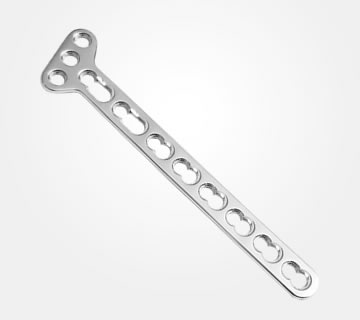

LCP 'T' PLATE OBLIQUE ANGLE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW & 3.5mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18

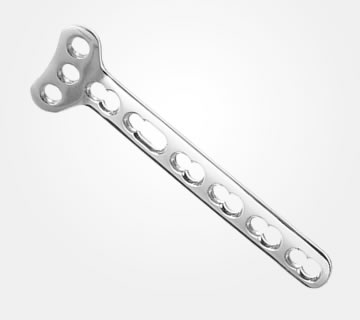

LCP 'T' PLATE RIGHT ANGLE

FOR 3.5mm LOCKING SCREW & 3.5mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18

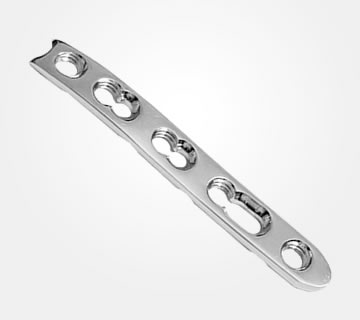

LCP DISTAL RADIUS PLATE STRAIGHT - DORSAL

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 5, 6

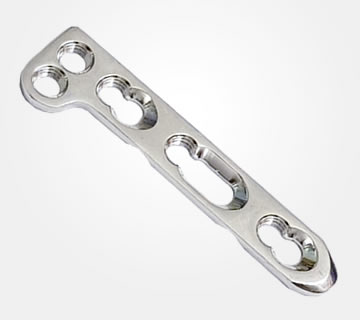

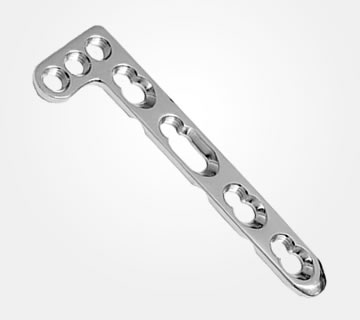

LCP 'L' DISTAL RADIUS PLATE - DORSAL (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2+3, 2+4, 2+5

LCP 'L' DISTAL RADIUS PLATE - DORSAL (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 3+3, 3+4, 3+5

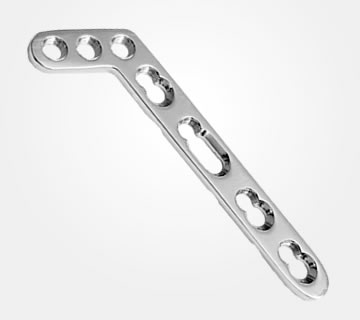

LCP 'L' DISTAL RADIUS PLATE OBLIQUE - DORSAL (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 3+3, 3+4, 3+5

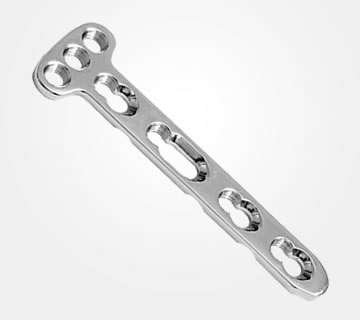

LCP 'T' DISTAL RADIUS PLATE - DORSAL

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 3+3, 3+4, 3+5

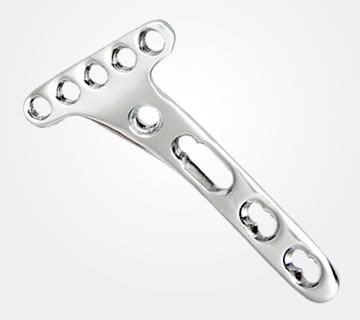

LCP DISTAL RADIUS PLATE - VOLAR (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 5+3, 5+4, 5+5

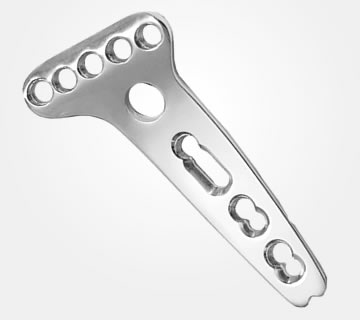

LCP BUTTRESS PLATE - VOLAR (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 3+3

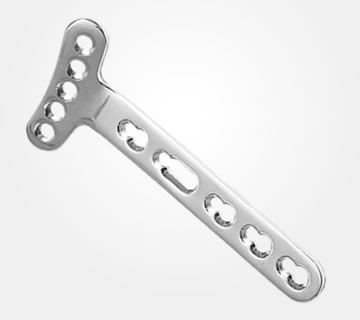

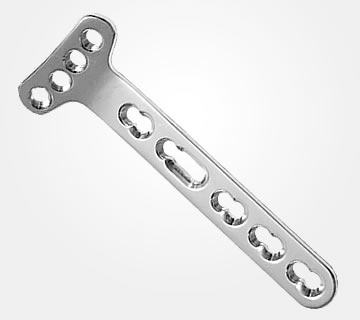

LCP DISTAL RADIUS - EXTRA ARTICULAR PLATE - VOLAR (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 5+3, 5+4, 5+5

LCP DISTAL RADIUS - EXTRA ARTICULAR PLATE - VOLAR (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 4+3, 4+4, 4+5

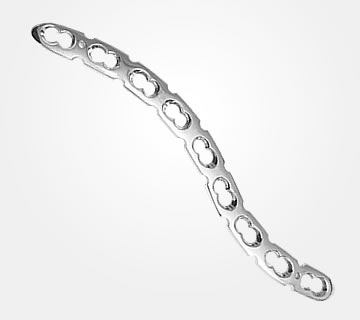

LCP SUPERIOR ANTERIOR CLAVICLE PLATE (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 5, 6, 7, 8, 9

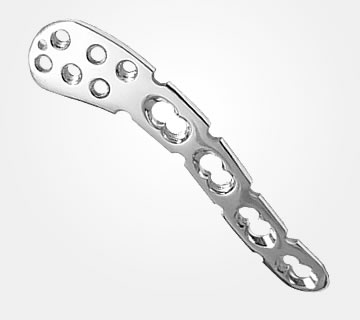

LCP SUPERIOR ANTERIOR CLAVICLE PLATE WITH LATERAL SUPPORT (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW, 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW
Hole: 3, 4, 5, 6, 7, 8, 9

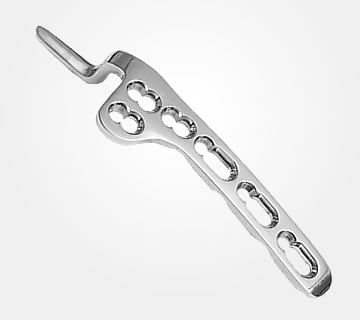

LCP CLAVICLE HOOK PLATE (12MM, 15MM & 18MM DEPTH)(LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW & 3.5mm CORTICAL SCREW
Hole: 4, 5, 6, 7, 8

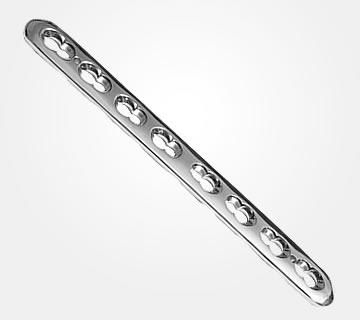

LCP SMALL PLATE

FOR 3.5mm LOCKING SCREW & 3.5mm CORTICAL SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

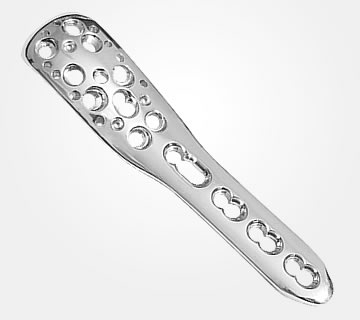

LCP PHILOS PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

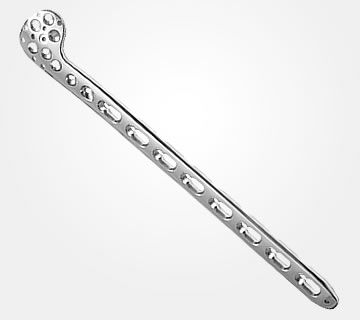

LCP PERIARTICULAR PROXIMAL HUMERUS PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

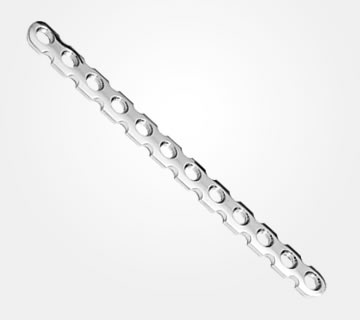

LCP RECONSTRUTION PLATE

FOR 3.5mm LOCKING SCREW & 3.5mm CORTICAL SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18

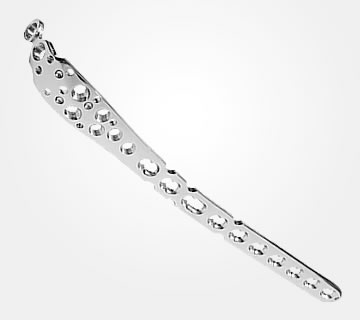

LCP OLECRANON PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 12, 14

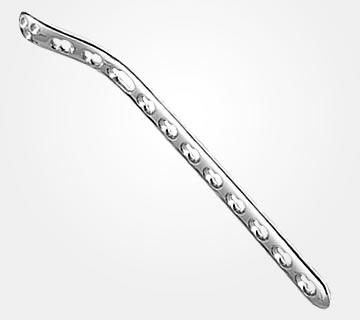

LCP DISTAL MEDIAL HUMERUS PLATE (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW, 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

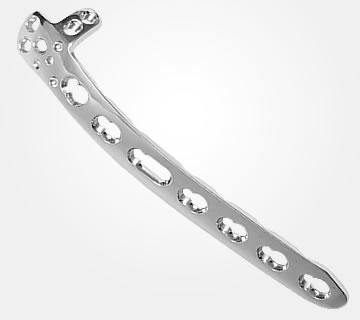

LCP DORSOLATERAL DISTAL HUMERUS PLATE WITH LATERAL SUPPORT (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW, 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

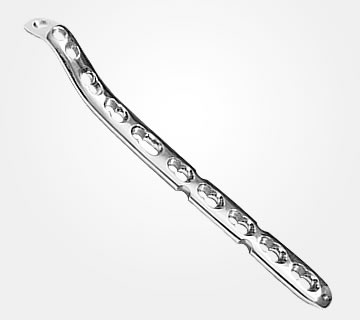

LCP DISTAL HUMERUS METAPHYSEAL PLATE

FOR 2.7mm LOCKING SCREW, 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW
Hole: 7, 8, 9, 10, 11, 12, 13

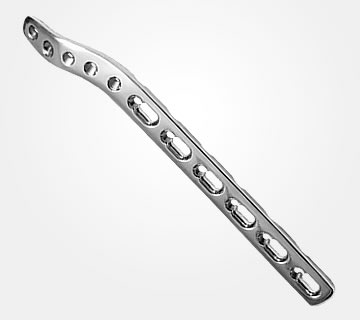

LCP EXTRA - ARTICULAR DISTAL HUMERUS PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

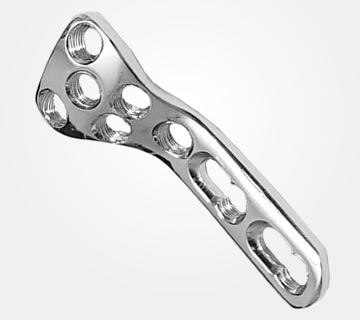

LCP RADIAL HEAD RIM PLATE (LEFT & RIGHT)

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2, 3, 4, 5

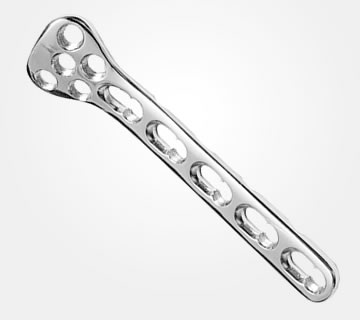

LCP RADIAL HEAD NECK PLATE

FOR 2.7mm LOCKING SCREW & 2.7mm CORTICAL SCREW
Hole: 2, 3, 4, 5

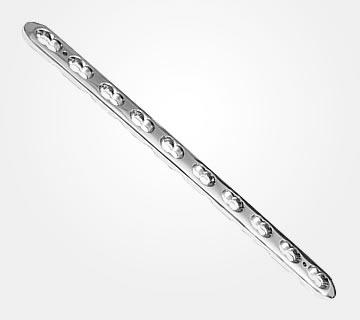

LCP NARROW PLATE

FOR 5.0mm LOCKING SCREW & 4.5mm CORTICAL SCREW
Hole: 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18

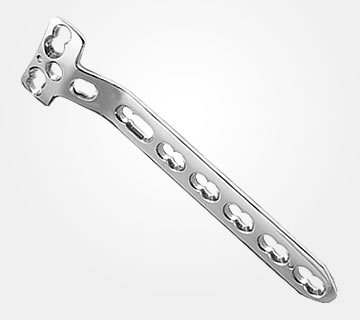

LCP T-BUTTRESS PLATE

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, 5.0mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

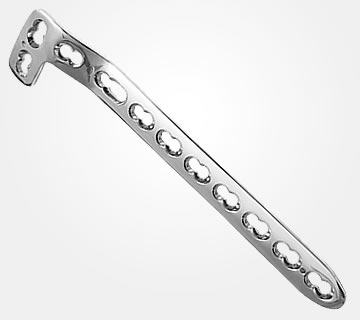

LCP L-BUTTRESS PLATE (LEFT & RIGHT)

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, 5.0mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

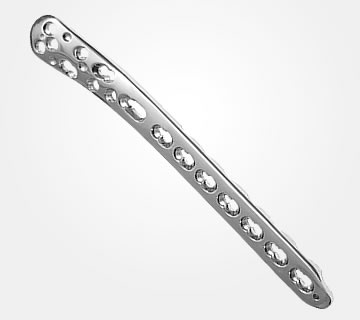

LCP LOW BEND DISTAL MEDIAL TIBIA PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20

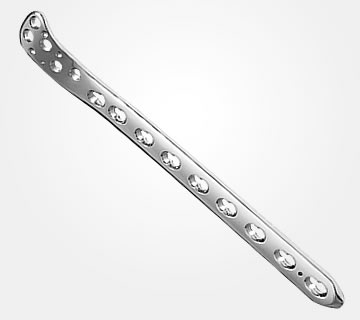

LCP PROXIMAL LATERAL TIBIA PLATE (HOCKEY)(LEFT & RIGHT)

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, 5.0mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

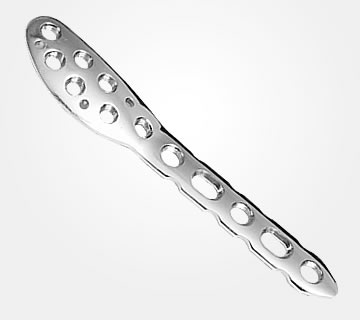

LCP LATERAL DISTAL FIBULA PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

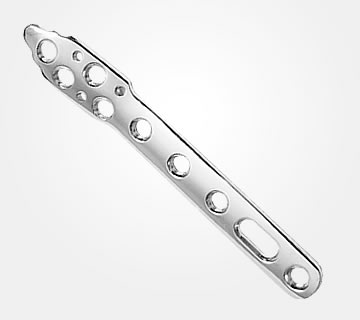

LCP LATERAL DISTAL FIBULA PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

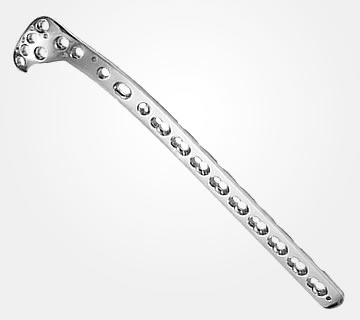

LCP PROXIMAL TIBIA PLATE (RAFT)(LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

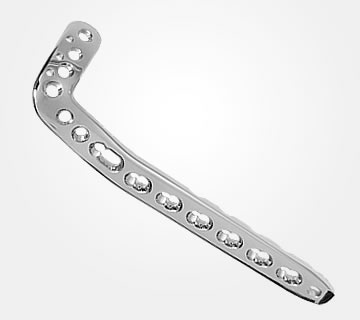

LCP ANTEROLATERAL DISTAL TIBIA PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15

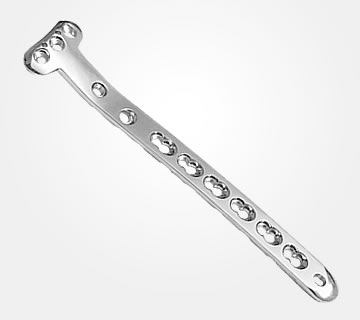

LCP PROXIMAL MEDIAL TIBIA PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

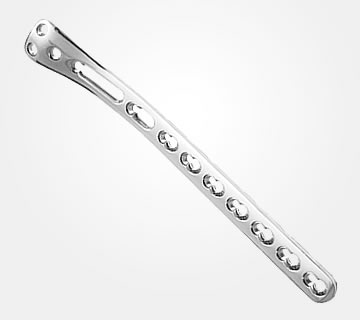

LCP POSTEROMEDIAL PROXIMAL TIBIA PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

LCP CALCANEAL PLATE (LEFT & RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 64MM, 69MM, 76MM, 81MM

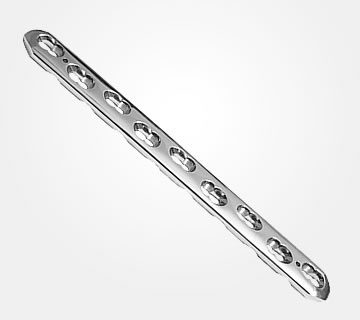

LCP BROAD PLATE

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW
Hole: 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

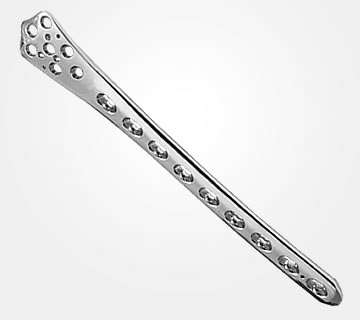

LCP DISTAL FEMUR PLATE (LEFT & RIGHT)

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, 5.0mm LOCKING CANCELLOUS SCREW, 6.5mm LOCKING CANCELLOU SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

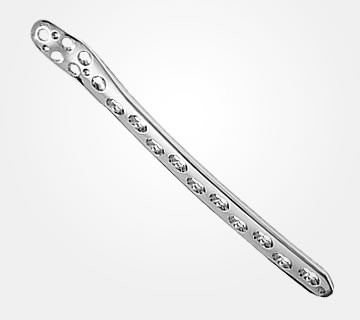

LCP PROXIMAL FEMUR PLATE (LEFT & RIGHT)

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, 5.0mm LOCKING CANCELLOUS SCREW, 6.5mm LOCKING CANCELLOU SCREW
Hole: 2, 4, 6, 8, 10, 12, 14, 16

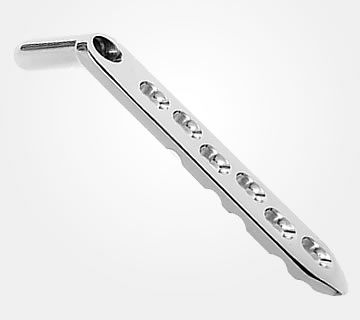

LCP D.H.S BARREL PLATE

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, D.H.S LEG SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16

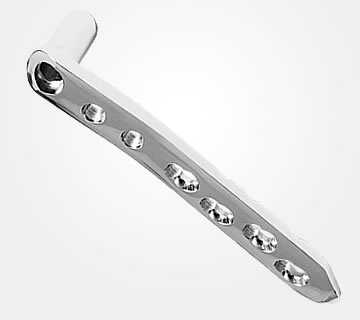

LCP 95˚ D.C.S. BARREL PLATE

FOR 5.0mm LOCKING SCREW, 4.5mm CORTICAL SCREW, D.H.S LEG SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

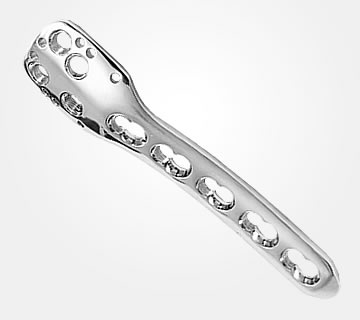

LCP PROXIMAL HUMERUS PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

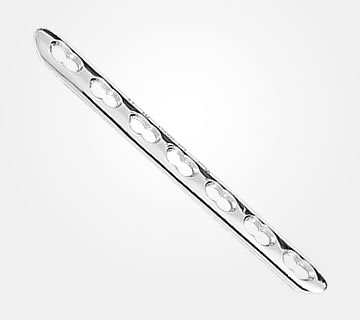

LCP 1/3 TUBULAR PLATE (COMBI HOLE)

FOR 3.5mm LOCKING SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18

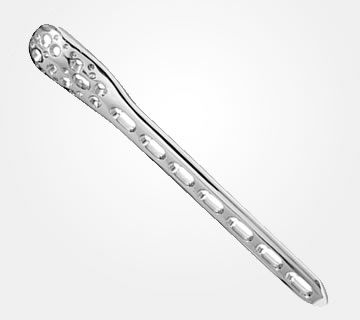

LCP PHILOS PLATE LONG

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

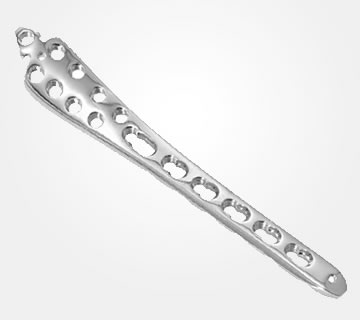

LCP DISTAL TIBIA PLATE WITH TAB (LEFT / RIGHT)

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

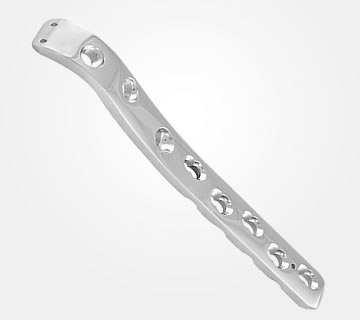

LCP PROXIMAL FEMORAL PLATE

FOR 5.0mm LOCKING SCREW, 6.0mm C.C LOCKING SCREW, 4.5mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

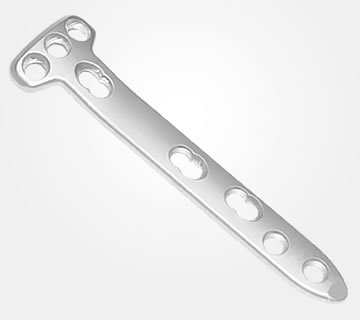

LCP TOMO FIX PLATE

FOR 5.0mm LOCKING SCREW, 5.0mm LOCKING CANCELLOUS SCREW, 4.5mm CORTICAL SCREW
Hole: 2, 3, 4

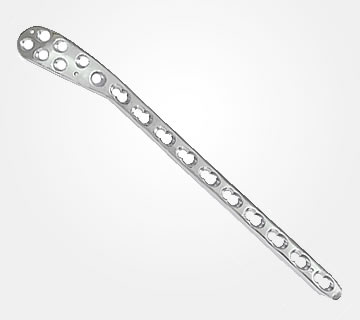

LCP DISTAL MEDIAL FEMUR PLATE

FOR 5mm LOCKING SCREW, 5mm LOCKING CANCELLOUS SCREW, 4.5mm CORTICAL SCREW
Hole: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

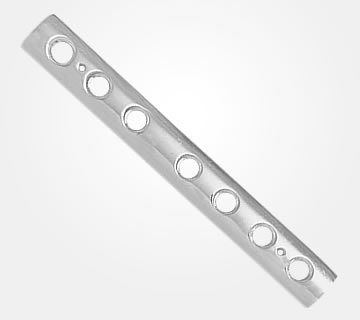

LCP 1/3 TUBULAR PLATE (ROUND HOLE)

FOR 3.5mm LOCKING SCREW
Hole: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

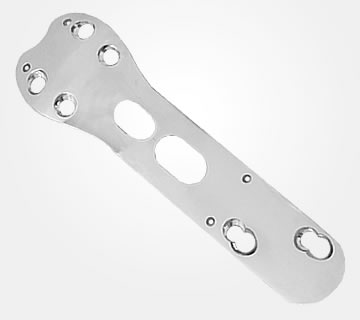

LCP PROXIMAL FEMUR GT BUTTRESS PLATE

FOR 3.5mm LOCKING SCREW
Hole: 2, 3, 4, 5, 6

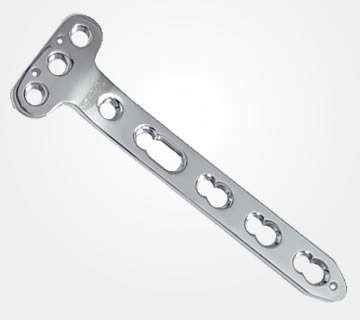

LCP DISTAL POSTERIOR TIBIA PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole: 3, 4, 5

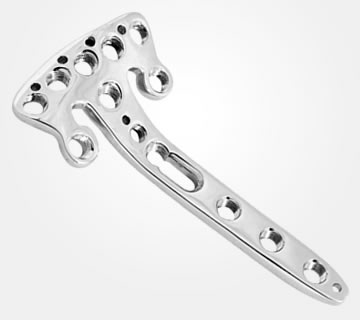

LCP DISTAL RADIUS VOLAR RIM PLATE

FOR 2.7mm LOCKING SCREW, 2.7mm CORTICAL SCREW
Hole: 3, 4

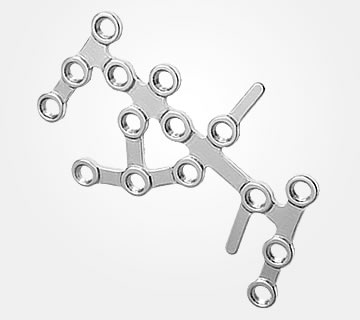

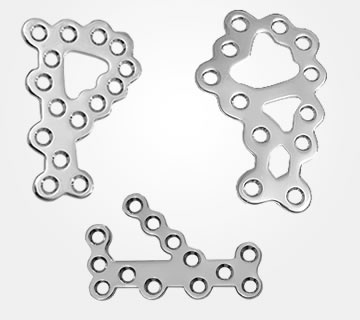

LCP CALCANEAL PLATE

FOR 3.5mm LOCKING SCREW, 3.5mm CORTICAL SCREW, 3.5mm LOCKING CANCELLOUS SCREW
Hole:  P, Q, Y
