External Fixators

Home » Our Products » External Fixators
DOWNLOAD BROCHURE

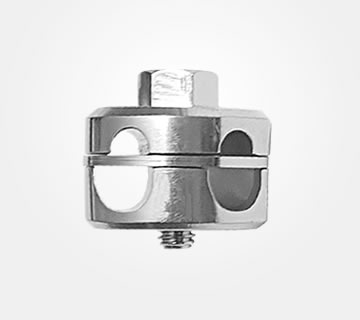

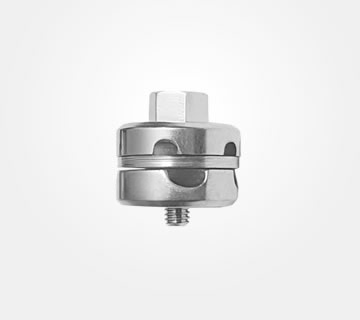

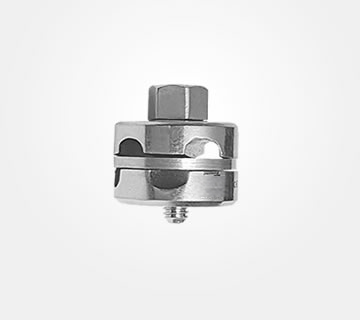

AESCULAP CLAMP

Size.: 2.5mm X 4.0mm

AESCULAP CLAMP

Size.: 4.0mm X 4.0mm

AESCULAP CLAMP

Size.: 4.5mm X 8.0mm

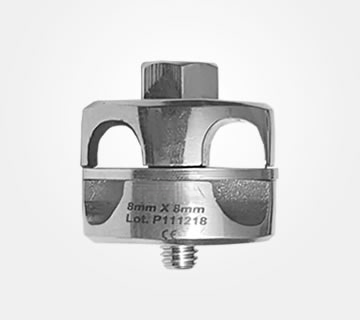

AESCULAP CLAMP

Size.: 8.0mm X 8.0mm

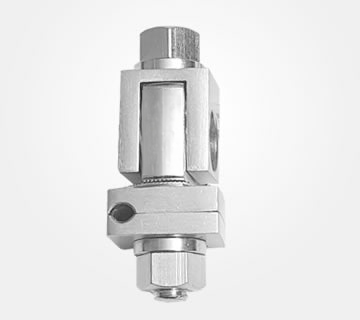

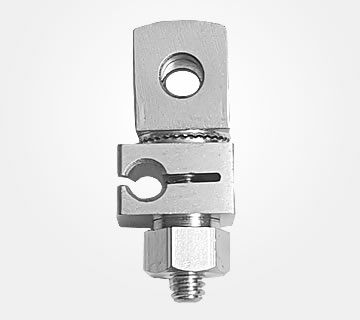

A.O. TYPE CLAMP

Size.: 4.5mm X 11mm

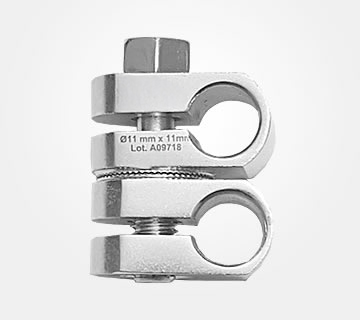

A.O. TYPE CLAMP

Size.: 11mm X 11mm

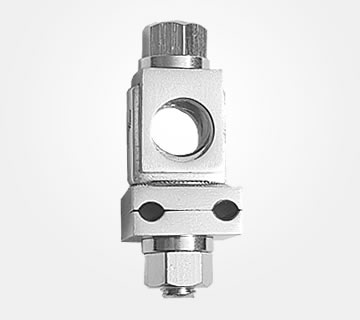

DOUBLE PIN CLAMP

Size.: 4.5mm X 11mm

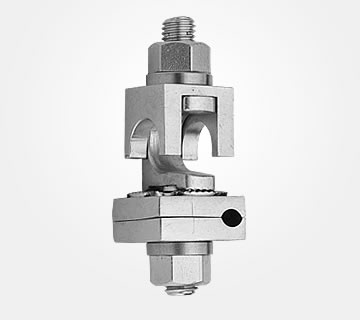

OPEN CLAMP

Size.: 4.5mm X 11mm

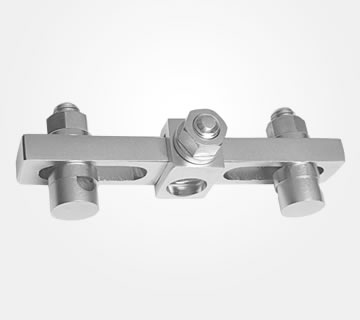

METAPHYTICAL CLAMP

(TRANSVERSE CLAMP ADJUSTABLE PIN )

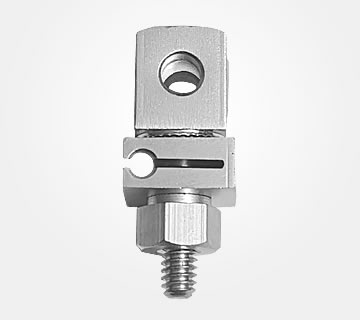

A.O. TYPE CLAMP

Size.: 2.5mm X 4.0mm

A.O. TYPE CLAMP

Size.: 3.5mm X 4.0mm

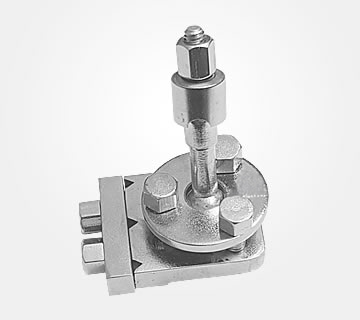

BALL & SOKET CLAMP

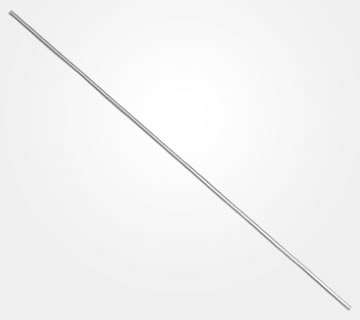

CONNECTING ROD

Dia.: 2.0mm
Length.: 4", 6", 8", 10", 12"

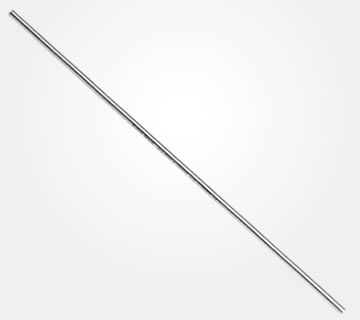

CONNECTING ROD

Dia.: 2.5mm
Length.: 4", 6", 8", 10", 12"

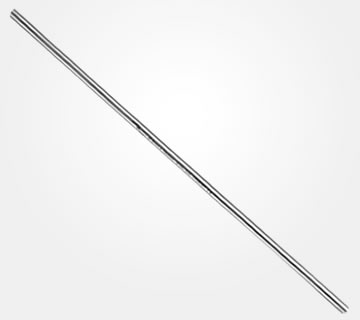

CONNECTING ROD

Dia.: 3.0mm
Length.: 4", 6", 8", 10", 12"

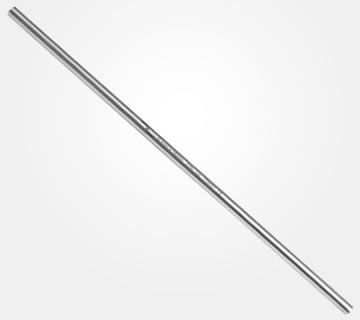

CONNECTING ROD

Dia.: 4.0mm
Length.: 4", 6", 8", 10", 12"

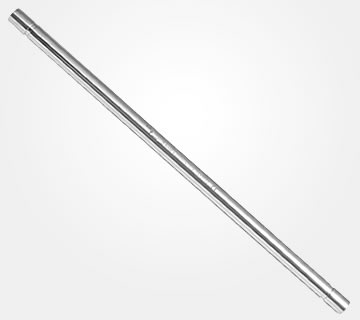

CONNECTING ROD

Dia.: 8.0mm
Length.: 6", 8", 10", 12", 14", 16"

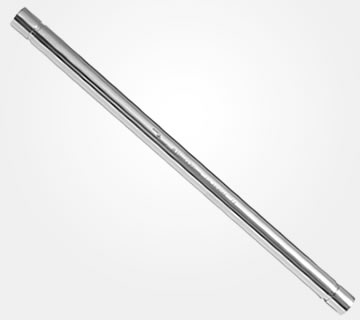

CONNECTING ROD

Dia.: 11mm
Length.: 6", 8", 10", 12", 14", 16"

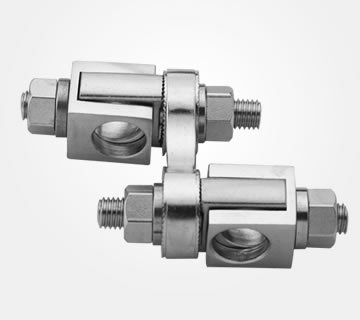

UNIVERSAL JOINT FOR TWO ROD

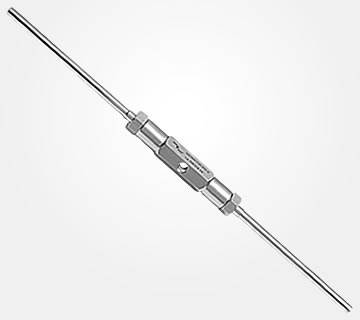

DISTRACTOR UNIT

Length.: 8", 10", 12"

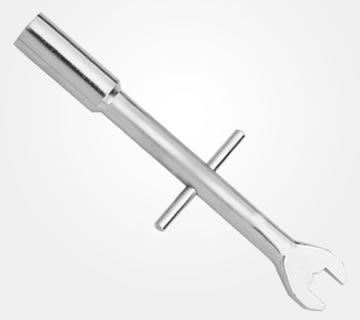

BALL & SOKET TPANNER

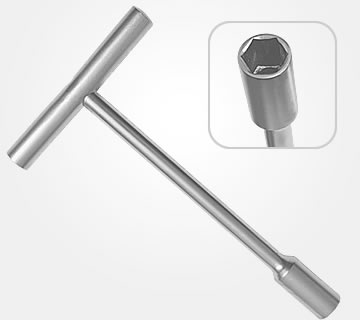

T-HANDLE SPANNER

Hex.: 12mm

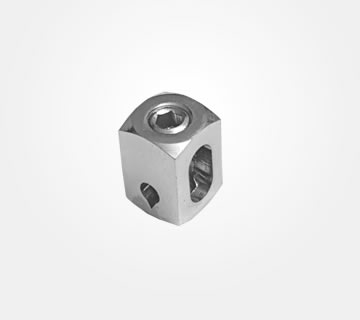

ALPHA CLAMP (LINK JOINT)

Size.: 6mm X 10mm (Upto 2mm wire & 3mm rod)

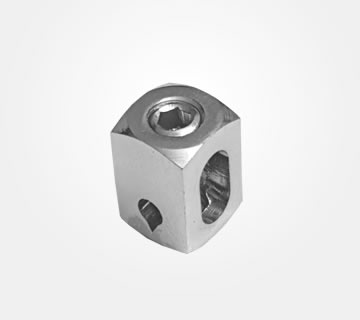

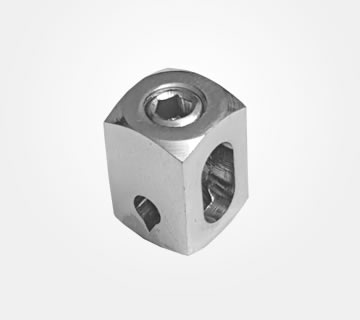

BETA CLAMP (LINK JOINT)

Size.: 8mm X 12mm (Upto 3mm wire & 4mm rod)

BETA CLAMP (LINK JOINT)

Size.: 10mm X 15mm (Upto 3mm wire & 4mm rod)

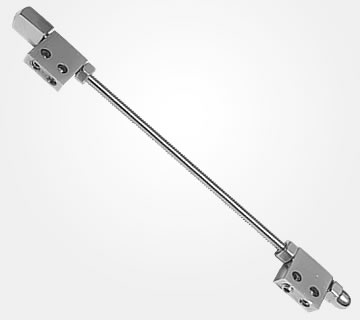

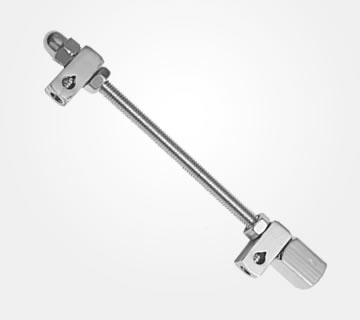

SINGLE PIN DISTRACTOR (M4) (C.T.E.V.)

Length.: 75, 100, 150mm

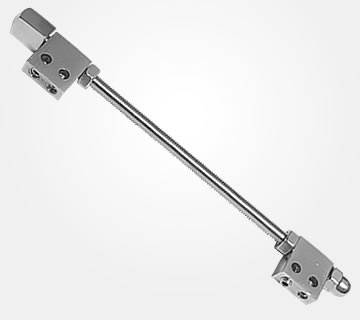

SINGLE PIN DISTRACTOR (M4) (C.T.E.V.)

Size.: 75, 100, 150mm

DOUBLE PIN DISTRACTOR (M6) (C.T.E.V.)

Size.: 150, 200, 250, 300mm

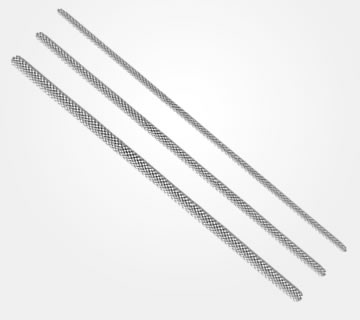

STEAIGHT ROD - KNURLED

Dia.: 2.0, 2.5, 3.0, 4.0mm
Length.: 75, 100, 150, 200, 250, 300, 350mm

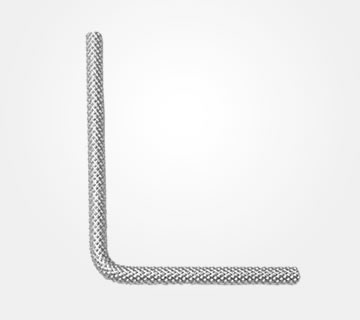

BENT ROD- KNURLED (SMALL "L" ROD)

Dia.: 2.0, 3.0, 4.0mm
Length.: 35mm X 35mm, 50mm X 50mm, 75mm X 75mm

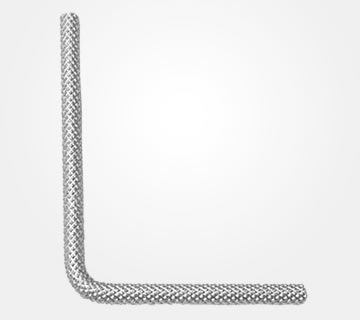

BENT ROD- KNURLED (LARGE "L" ROD)

Dia.: 2.0, 3.0, 4.0mm
Length.: 50mm X 50mm, 60mm X 60mm, 90mm X 90mm

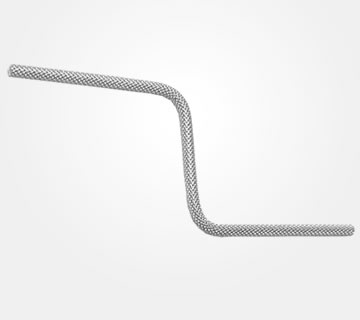

BENT ROD- KNURLED ("Z" ROD)

Dia.: 2.0, 3.0, 4.0mm
Length.: 60mm X 45mm X 60mm, 80mm X 50mm X 80mm, 100mm X 60mm X 100mm

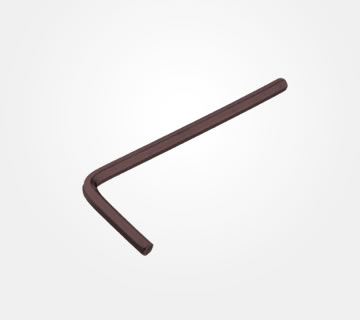

ALLEN KEY

Dia.: 2.0, 2.5, 3.0, 4.0mm

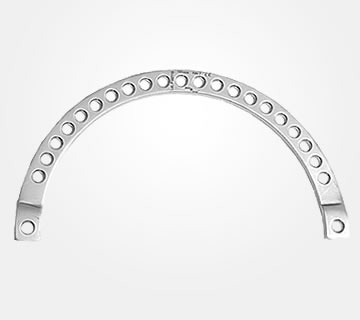

HALF RING

Size.: 100, 120, 140, 150, 160, 180, 200, 220mm

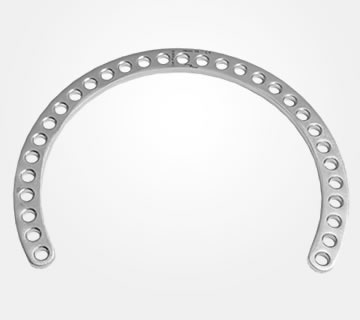

5/8 RING

Size.: 120, 140, 160, 180, 200mm

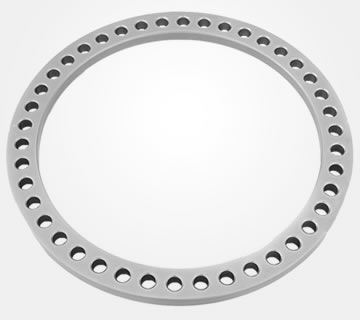

FULL RING

Size.: 120, 140, 160, 180, 200mm

ITALIAN FEMORAL ARCH

Size.: 90° & 120° (SMALL & LARGE)

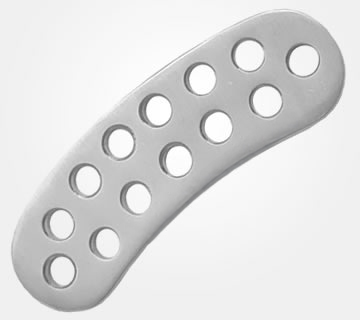

ARCH

Hole.: 13, 25, 35

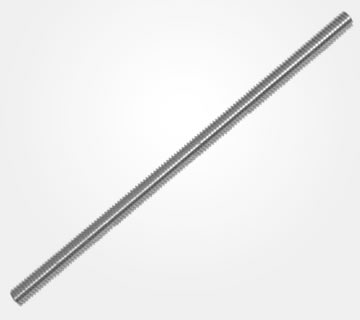

THREADED ROD (6.0mm)

Dia.:  6.0mm
Length.: 40, 60, 80, 100, 150, 175, 200, 225, 250, 300, 350, 400mm

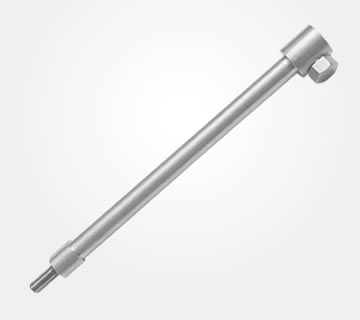

TRLESCOPIC ROD

Length.: 150, 200mm

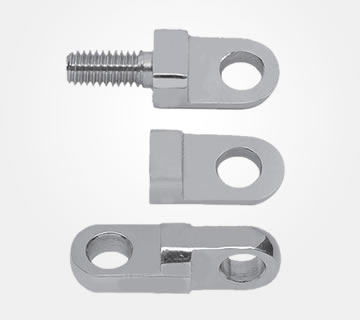

HINGES

Hole.: MALE -1 Hole, FEMALE -1 Hole, 90° Hinges

SIMPLE WASHER

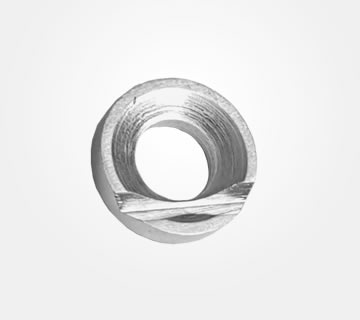

CONNICAL WASHER

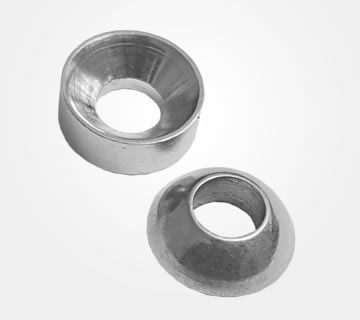

CONNICAL COUPLE WASHER

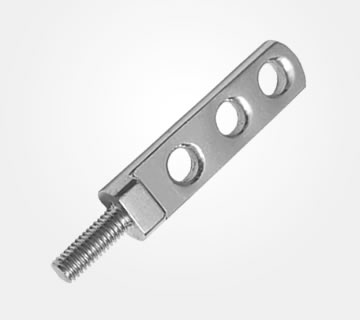

POST - MALE

Hole.: 1, 2, 3, 4

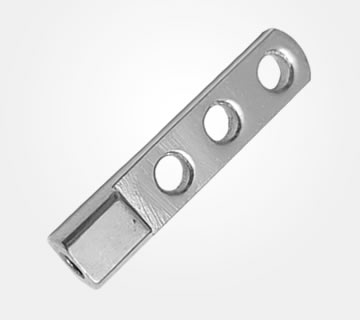

POST - FEMALE

Hole.:  1, 2, 3, 4

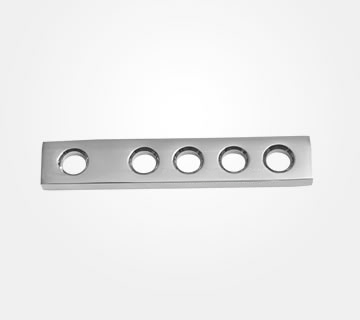

CONNECTING PLATE

Hole.: 1+2, 1+3, 1+4, 1+5, 1+6, 1+7, 1+8, 1+9, 1+10

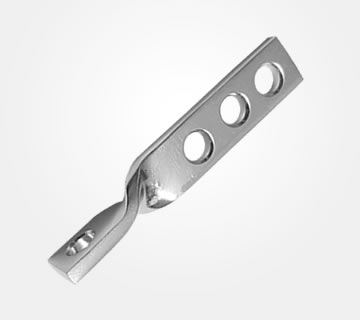

TWISTED PLATE

Hole.: 1+2, 1+3, 1+4, 1+5, 1+6

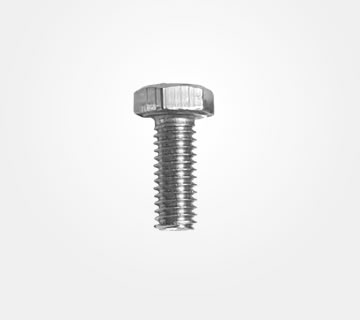

CONNECTING BOLT

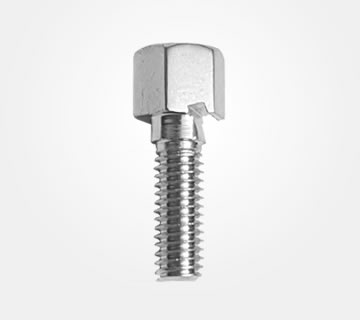

WIRE FIXATION BOLT (HEX HEAD) (SLOTTED)

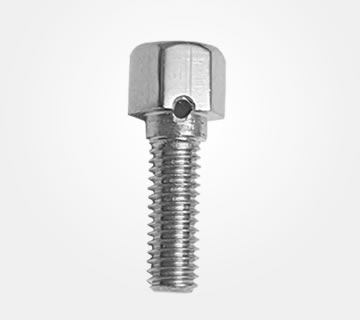

WIRE FIXATION BOLT (HEX HEAD) (CENTRIC)

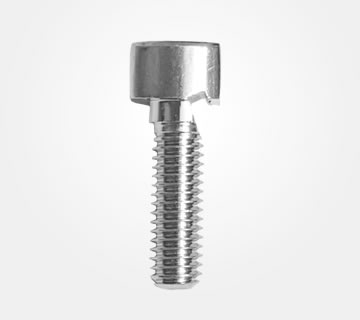

WIRE FIXATION BOLT (TWO PART HEAD) (SLOTTED)

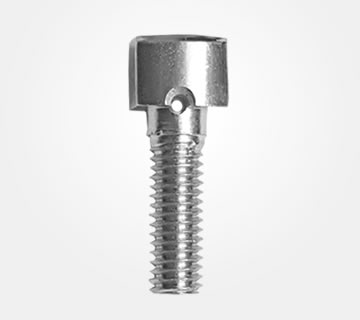

WIRE FIXATION BOLT (TWO PART HEAD) (CENTRIC)

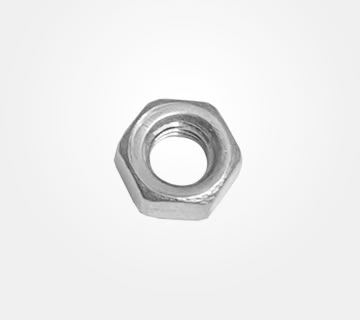

NUT

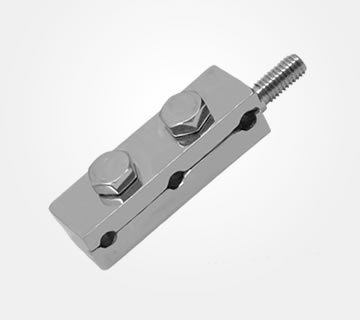

MULTY PIN FIXATION BOLT

SINGLE PIN FIXATION BOLT

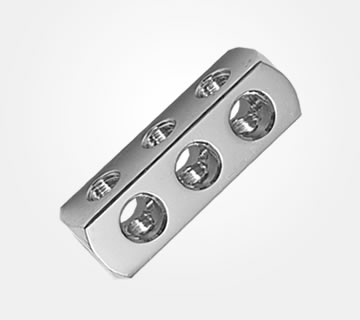

WRENCH OF CUBE

Hole.: 1, 2, 3, 4, 5

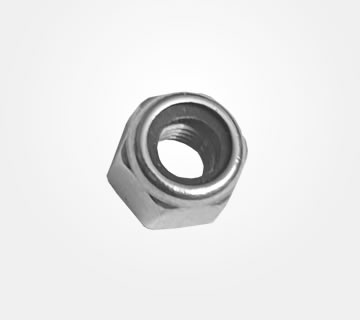

NYLON NUT

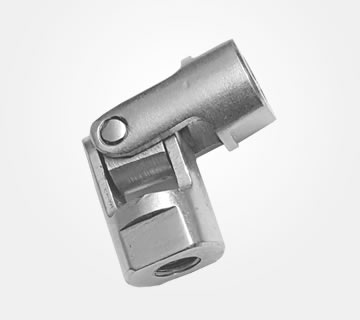

UNIVERSAL JOINT

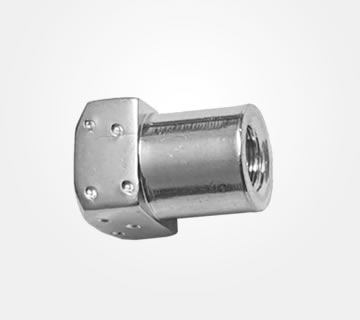

SQUARE NUT

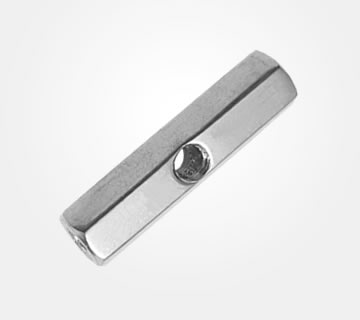

THREADED SOCKETS

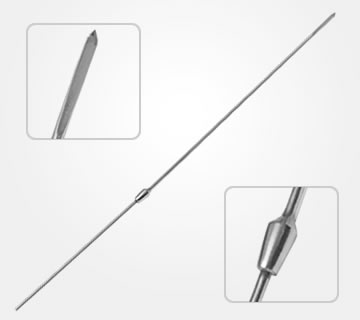

OLIVE WIRE (BAYONET POINT)

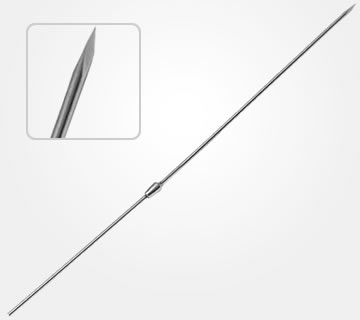

OLIVE WIRE (TROCAR POINT)

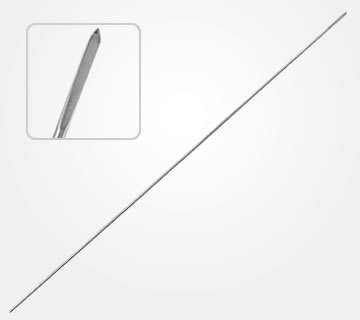

TENSION K-WIRE (BAYONET POINT)

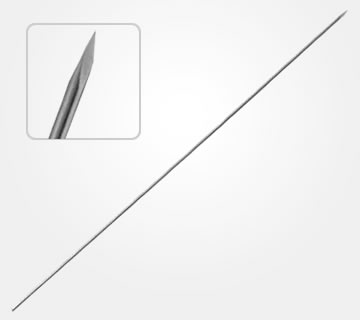

TENSION K-WIRE (TROCAR POINT)

Dia.:  1.8mm
Length.: 16"

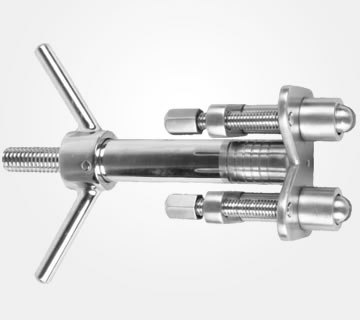

WIRE TENSIONER (MANNUAL)

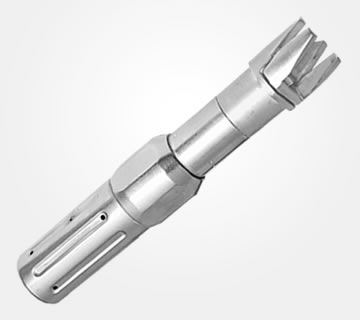

WIRE TENSIONER (DYNAMETRIC)

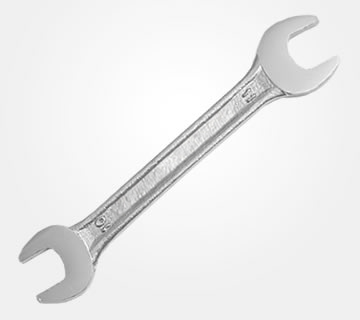

ORDINARY FIX SPANNER

Length.: 10mm x 11mm

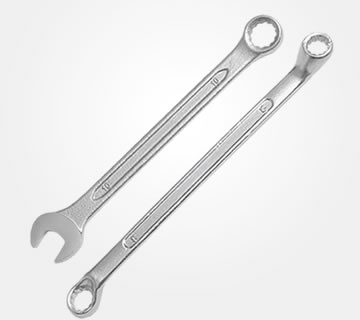

RING SPANNER

Length.: 10mm x 11mm
